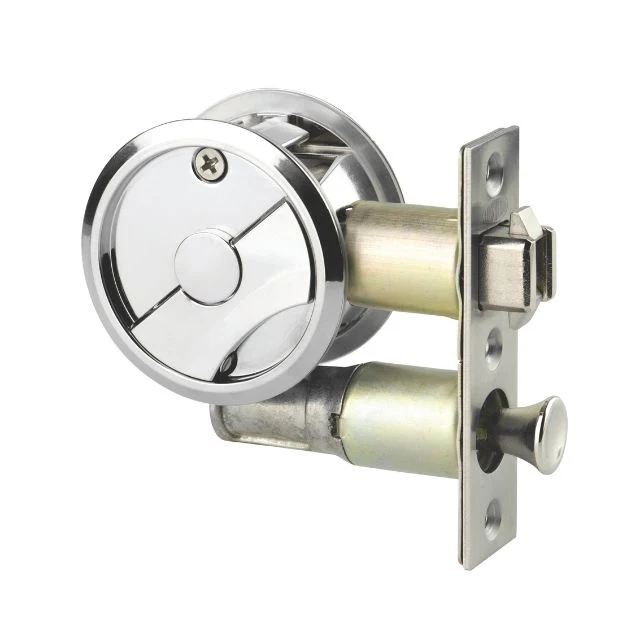

Lockwood Symmetry Round Cavity Sliding Door Privacy Set Chrome Plate Dp

The Lockwood Cavity Sliding Door Privacy Locks provide a modern and secure solution for any home. With a latchable sliding door, your bathroom, lounge, or office can have both a sleek appearance and privacy. No need to sacrifice style for function with these versatile locks.

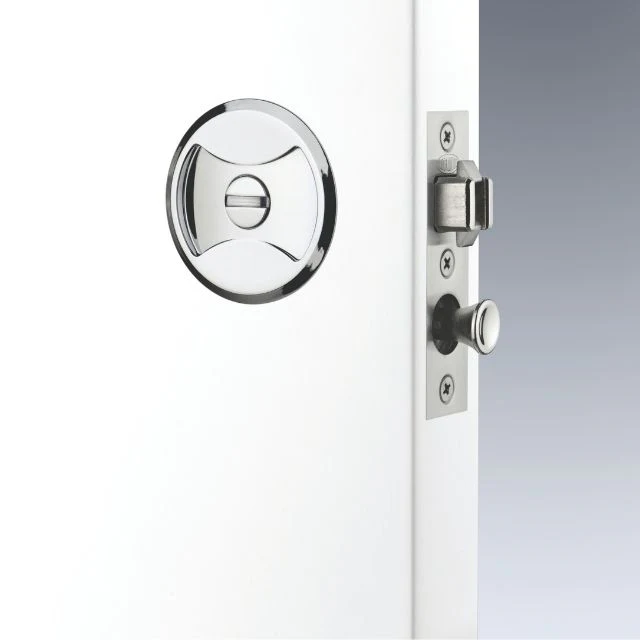

• Fitted flush against the panel of the sliding door for full recess into the door cavity
• Easily fitted into a standard 54mm door preparation with a 60mm backset.
• Outside - Emergency release button opened by coin or screwdriver Inside - Locked or unlocked by turn-plate
• Designed after extensive research, the sliding cavity door lock features an innovative retractable door pull which combines style with functionality.
• Australian standards compliance AS4145.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force
• Available in a full suite of door hardware options in 5 types and 3 colours. View the full collection here
• 25 Year Warranty

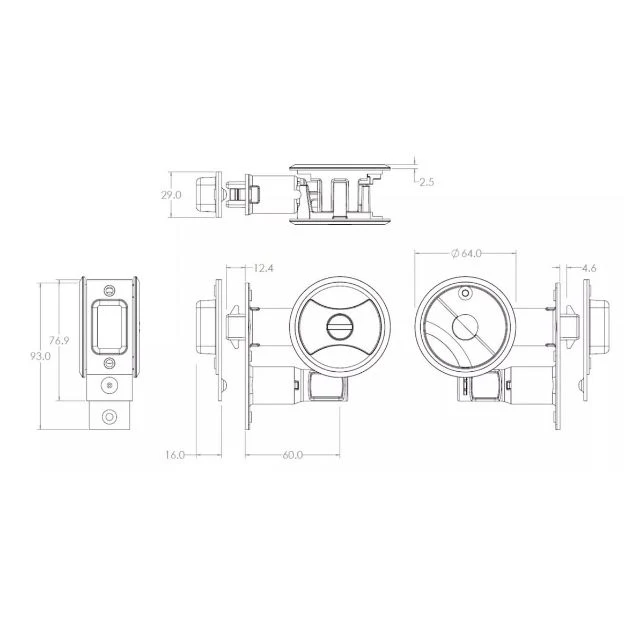

Specifications

Usage: Privacy
Material: Zinc Alloy
Mounting: Internal
Door Thickness: 32* - 40mm * Requires spacer ring (included)
Latch Type: Bolt Beak
Lock Type: Bolt Beak
Backset: 60mm
Finish/coating: Zinc Alloy
Length: 64mm
Width: 29mm
Warranty:  25 Year

Installation Instructions

Download the installation instructions sheet below:

Lockwood Symmetry Round Cavity Sliding Door Privacy Set Chrome Plate Dp

What's In The Box

Latch Face Plate, Front and Back furniture, packers, fixing screws, installation instructions and drilling template.
